High-Quality Butt Weld Fittings Manufacturer & Exporter to the Middle East

Supplying ASME/ANSI standard Butt Weld Fittings — elbows, tees, reducers, and caps — to UAE, Saudi Arabia, Oman, Qatar, and Kuwait for industrial and oil & gas applications.

Butt Weld Fittings Manufacturer & Exporter | Elbows, Tees, Reducers & Caps – Tube Turn India Pvt. Ltd.

Tube Turn India Pvt. Ltd. is a globally recognized manufacturer, supplier, and exporter of Butt Weld Fittings, delivering high-quality pipe fittings for critical industrial applications. Our Butt Weld Pipe Fittings are engineered to ensure leak-proof, high-strength, and corrosion-resistant connections in piping systems used across Oil & Gas, Petrochemical, Power, Chemical, and Water Treatment industries.

Our Butt Weld Pipe Fittings are precisely engineered components used to connect pipes and change flow direction, branching, or diameter in industrial piping systems.

We follow stringent inspection and testing protocols, including:

Visual Inspection
Dimensional Checks
Radiography & Ultrasonic Testing
Hydrostatic & Pneumatic Tests
Enquire Now Download Brochure

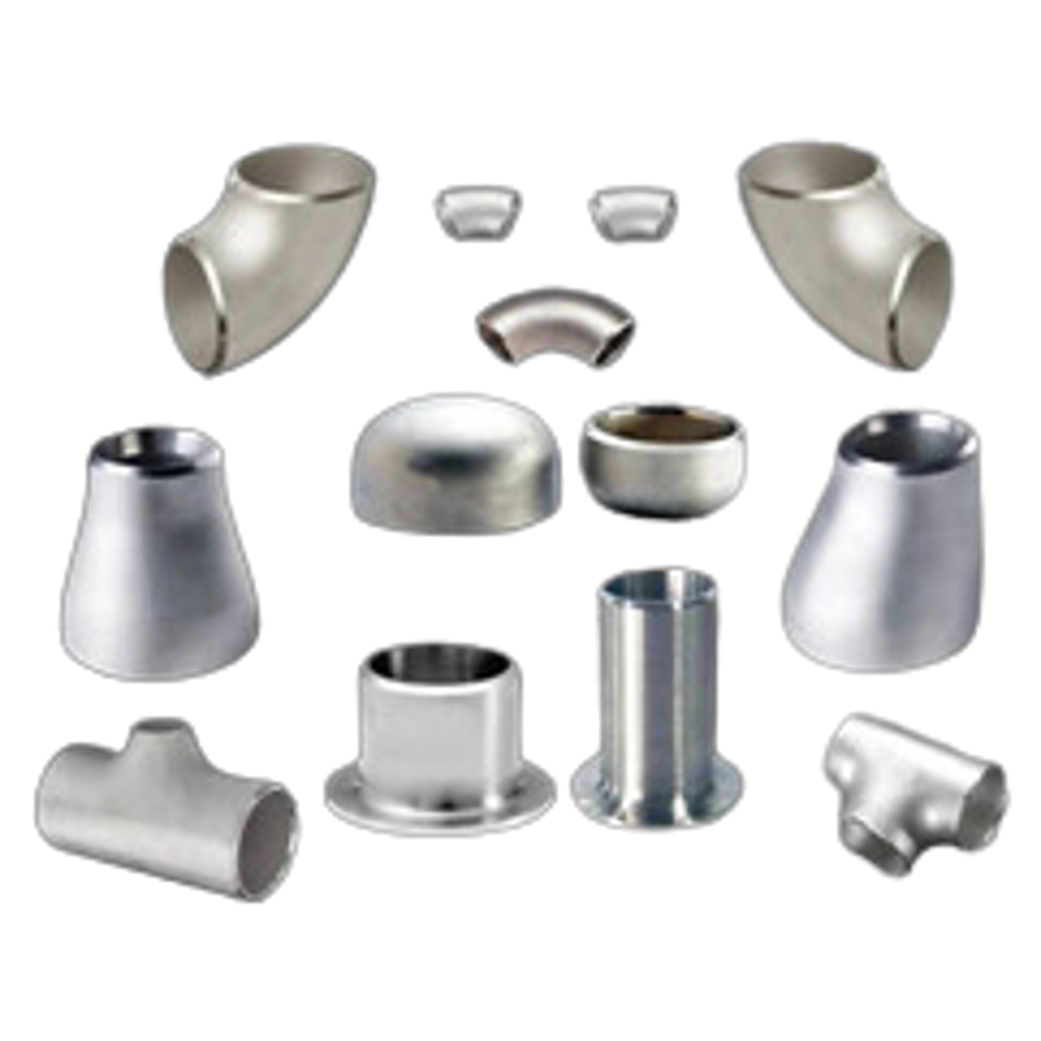

Butt Weld Fittings
Technical Information

Specifications & Advantages

Design Standards
  • Carbon Steel: ASTM A234 WPB, WPC
  • Stainless Steel: ASTM A403 WP304, WP304L, WP316, WP316L
  • Alloy Steel: ASTM A234 WP11, WP22, WP5
  • Duplex & Super Duplex Steel: ASTM A815 UNS S31803, S32750
  • Nickel Alloys & Inconel: ASTM B366 UNS N06600, N06625
Oil & Gas Refineries
Petrochemical & Fertilizer Plants
Power Generation & Nuclear Facilities
Water Treatment & Desalination Plants
LNG Terminals & Offshore Platforms
Process Piping and Chemical Plants

Product Range

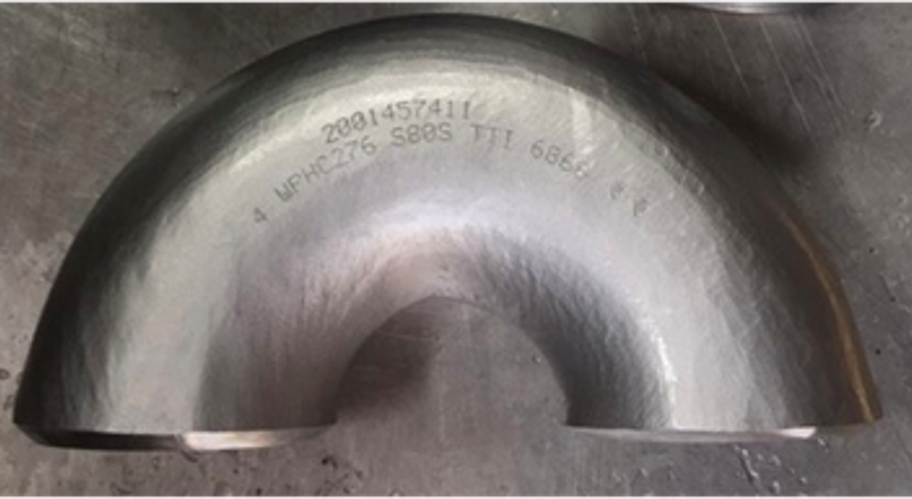

P22 Mixing Tee Spool
4" S80S Hastelloy smls 180° Bend
Client: Reliance

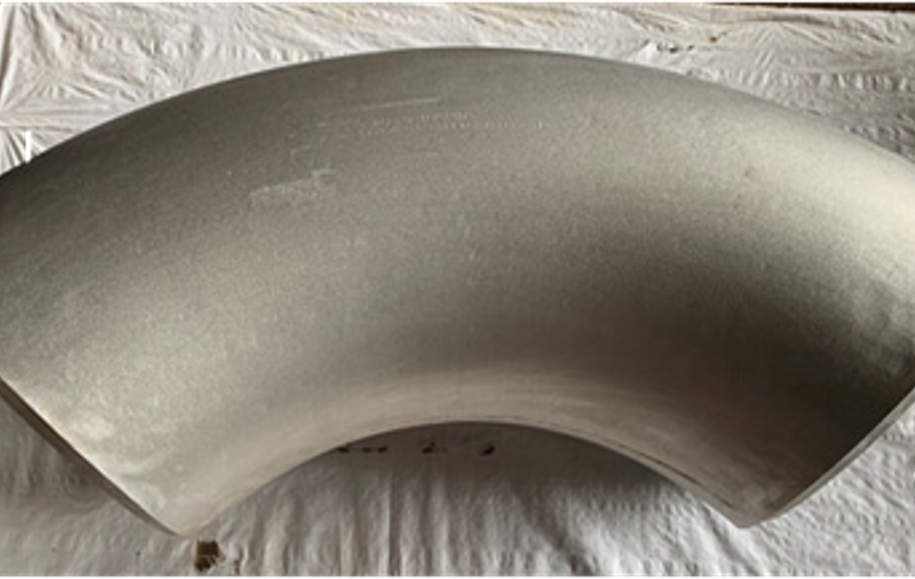

18' S80 Inconel 90° Elbow
18" S80 Inconel 90°Elbow
Client: Kalhour Oilfield Eq.Ltd (UAE)

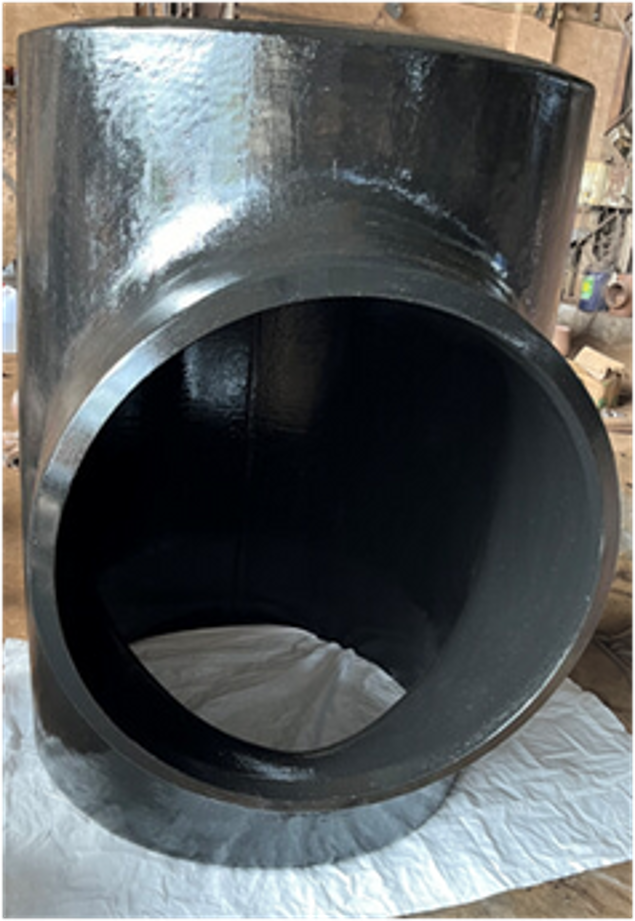

42 60 mm x 36 32 mm WPHY65 Extruded Tee
42" 60 mm x 36" 32 mm WPHY65 Extruded Tee
Client: VKVC (EIL)

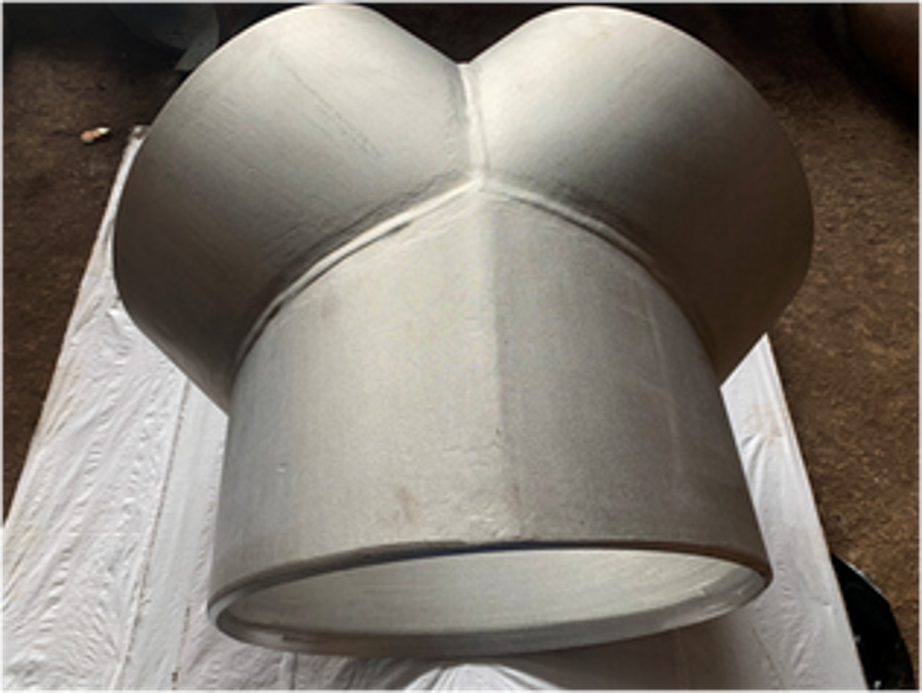

28 19mm SS304H Fab. Y
28" 19mm SS304H Fab. "Y"
Client: Kalhour Oilfield Eq. Ltd. (UAE)

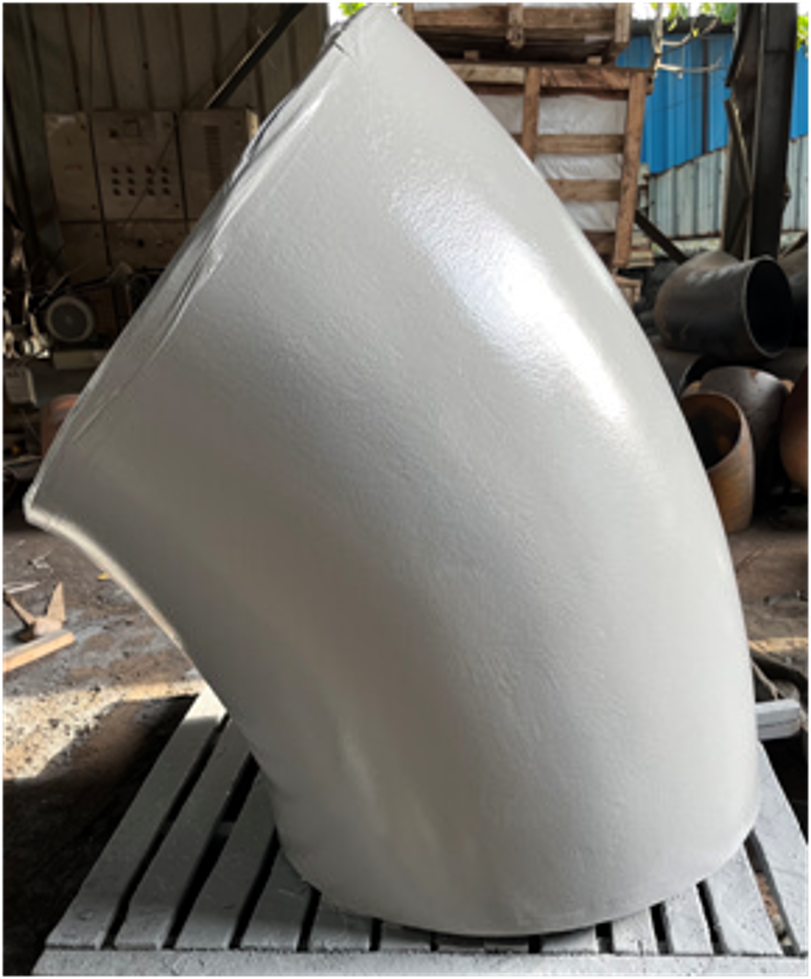

42 XS Epoxy coated 45° Elbow
42" XS Epoxy coated 45° Elbow
Client: IOCL

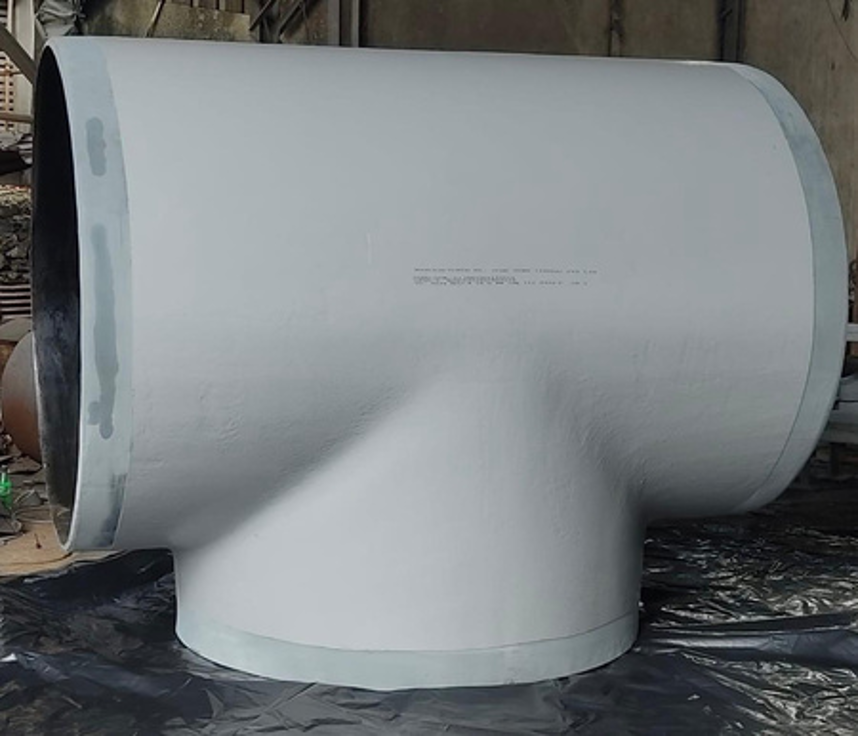

70 19mm Epoxy coated CS Tee
70" 19mm Epoxy coated CS Tee
Client: IOCL
Dimensional Range

Butt Weld Fittings – Category Wise

ITEMS SEAMLESS WELDED
90° & 45° LR/SR ELBOWSUp to 24” (600NB)Up to 72” (1800NB)
EQUAL & REDUCING TEESUp to 24” (600NB)Up to 72” (1800NB)
CON. & ECC. REDUCERSUp to 24” (600NB)Up to 72” (1800NB)
END CAPSUp to 24” (600NB)–
RETURN BENDSUp to 6” (150NB)–
CROSSUp to 8” (200NB)Up to 36” (900NB)
SWAGE NIPPLEUp to 4” (100NB)–
Pipe Fitting Material of Construction

Material Grades We Offer

Ferrous Materials

MaterialGrades
Low Temperature Carbon SteelASTM A420 WPL3, A420 WPL6
Carbon SteelASTM A234 WPB, WPBW, WPHY 46–70
Stainless SteelASTM A403 WP 304–904L
Duplex SteelASTM A815 / SA815 UNS 31803–32760
Alloy SteelASTM/ASME A/SA234 WP1–WP91

Non-Ferrous Materials

MaterialGrades
Nickel / Nickel AlloyCB3, UNS 8825 INCONEL (825), UNS 6600 (600), UNS 6625 (625), UNS 10276 (HASTELLOY C276)
Manufacturing Process

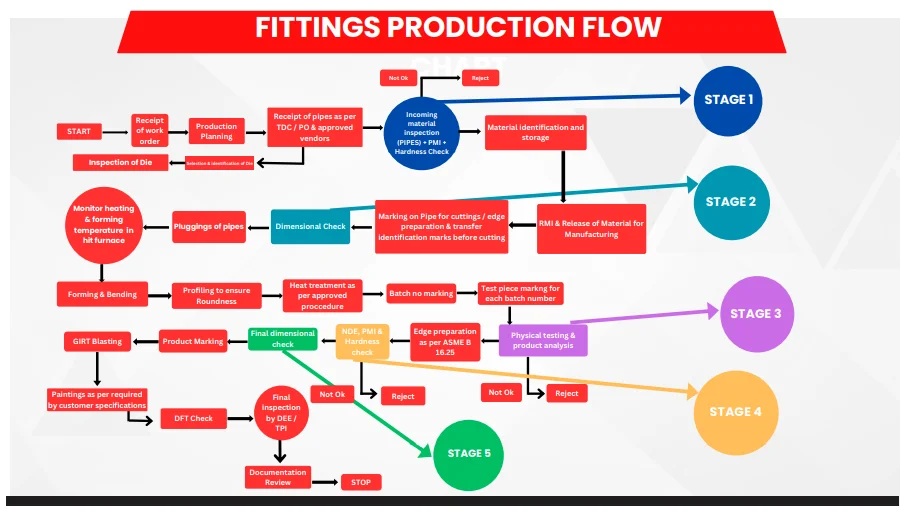

Fittings Production Flow

Fittings Production Flow Chart

Let’s Build Your Next Project Together

Partner with Tube Turn India for precision-engineered piping spools that deliver quality and performance.
